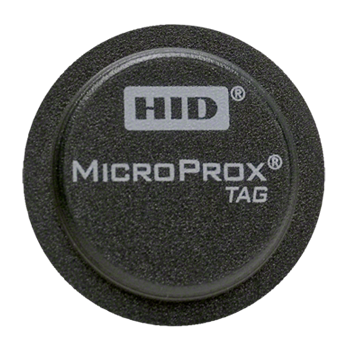

MicroProx Tag
125 kHz Proximity Adhesive Tag

The size of a coin, the Tag easily attaches to all nonmetallic materials.

* The Tag can be programmed in any HID proximity format, and is compatible with all HID proximity readers.

* The Tag is RF-programmable for ease of encoding with HID's ProxProgrammer®.

Data Sheet

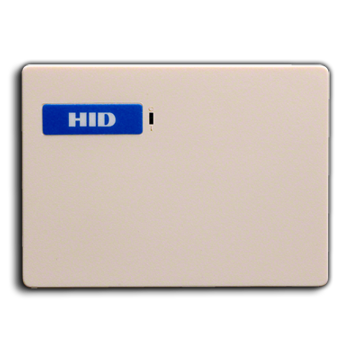

ProxPass II
125 kHz Proximity Active Vehicle Tag

Active tag for vehicle access control.

* Access door permits convenient battery replacement.

* Specifically designed for vehicle access control.

* Provides up to six foot read range.

* Velcro backing attaches easily to interior of vehicle windshield.

* Attractive, durable sealed case.

* Compatible with MaxiProx® reader and all HID card formats.

* Two to five year battery life, depending on usage.

* Competitively priced as compared to VHF vehicle tags.

Data Sheet

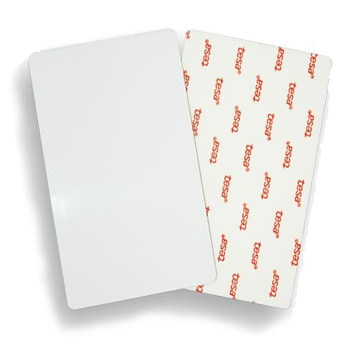

Adhesive Label

The Adhesive Label is used with the ProxCard II and is compatible with most direct image printers.

ISOProx II
125 kHz Proximity Card

Combines proximity technology and offers photo identification capability on a single card.

* Graphics quality surface for use with direct image printers.

* Same size and thickness as a standard credit card.

* Vertical or horizontal slot punch capability.

* Lifetime warranty*.

* Dimensions: 2.125” x 3.375” x 0.033” (5.40 x 8.57 x 0.084 cm)

Data Sheet

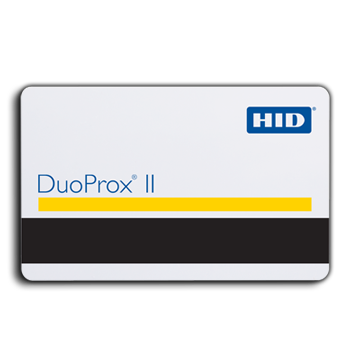

DuoProx II
125 kHz Proximity Card With Magnetic Stripe

Combines proximity technology and offers photo identification capability on a single card.

* Graphics quality surface for use with direct image printers.

* Same size and thickness as a standard credit card.

* Vertical or horizontal slot punch capability.

* Lifetime warranty*.

* Dimensions: 2.125” x 3.375” x 0.033” (5.40 x 8.57 x 0.084 cm)

* Magnetic stripe technology.

* Thin enough to be used with standard swipe or insert readers. • Lifetime warranty*.

Data Sheet

Smart ISOProx II
125 kHz Proximity Card, Contact Smart Chip Embeddable

* Allows a contact smart chip module to be embedded on ISO thickness proximity cards for multi-technology applications.

* Graphics quality surface for use with direct image printers.

* Smart DuoProx II includes magnetic stripe.

* Same size and thickness as a standard credit card.

* Lifetime warranty*.

* Dimensions: 2.125” x 3.375” x 0.033” (5.40 x 8.57 x 0.084 cm)

Data Sheet

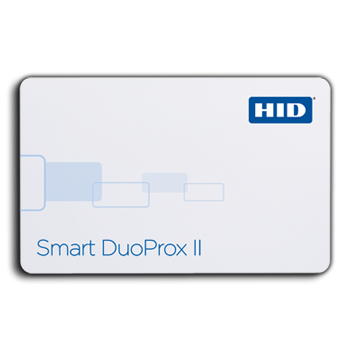

Smart DuoProx II
125 kHz Proximity Card With magnetic stripe, contact smart chip embeddable

* Allows a contact smart chip module to be embedded on ISO thickness proximity cards for multi-technology applications.

* Graphics quality surface for use with direct image printers.

* Smart DuoProx II includes magnetic stripe.

* Same size and thickness as a standard credit card.

* Lifetime warranty*.

* Dimensions: 2.125” x 3.375” x 0.033” (5.40 x 8.57 x 0.084 cm)

Data Sheet

ProxCard Plus
Wiegand and 125 kHz Proximity Card

* Combines Wiegand technology, proximity technology and photo identification capability on a single card.

* Graphics quality surface for use with direct image printers.

* Lifetime Warranty

* Dimensions: 2.125” x 3.375” x 0.037” (5.40 x 8.57 x 0.0954 cm

Data Sheet

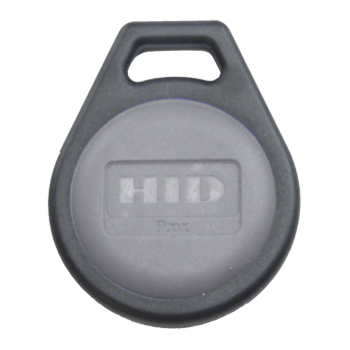

ProxKey III
A Proximity Card Keyfob for Access Control

* Small enough to fit on a key ring.

* Universal compatibility with HID proximity card readers.

* Provides an external number for easy identification and control Can be placed on a key ring for convenient entry.

* Supports formats up to 85 bits, with over 137 billion codes.

* Using HID's ProxProgrammer®, card vendors can ship proximity keyfobs, custom programmed to their customers' requirements, from their own inventory. Enables smaller order quantities and overnight delivery. (Check with vendor for availability.)

* Lifetime warranty.

Data Sheet

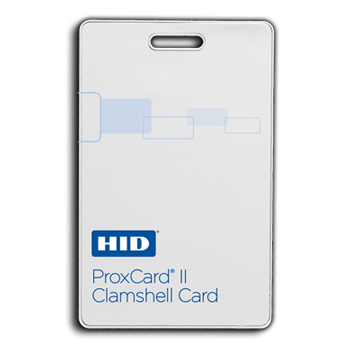

ProxCard® II
Value Priced 125 kHz Proximity Card

* Price competitive with all other card technologies.

* Lifetime warranty*.

* Thin enough to carry in a wallet or purse.

* Dimensions: 2.125” x 3.375” x 0.070” (5.40 x 8.57 x 0.18 cm)

Data Sheet
