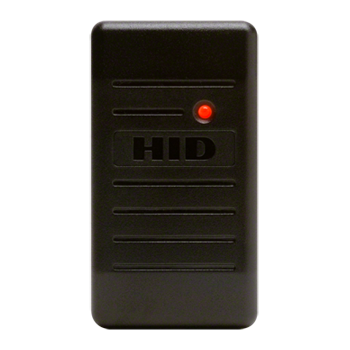

ProxPoint Plus
125 kHz Value Priced Proximity Reader

* Small sized, low cost reader features a beeper and multicolor LED which can be host and/or locally controlled.

* Potted reader suitable for indoor or outdoor use.

* Power requirements: 5-16 VDC.

* Current requirements: 20mA avg / 75mA peak at 12VDC.

* Dimensions: 3.135” x 1.70” x 0.66” (7.96 x 4.3 x 1.68 cm).

* Classic Series covers available in black, gray, white or beige. Designer Series covers available in black or gray.

* Base part numbers: 6005 (Wiegand), 6008 (Clock-and-Data).

* 18” (45 cm) wire pigtail standard; consult factory for 9’ (2.7 m) pigtail available by special order.

Data Sheet

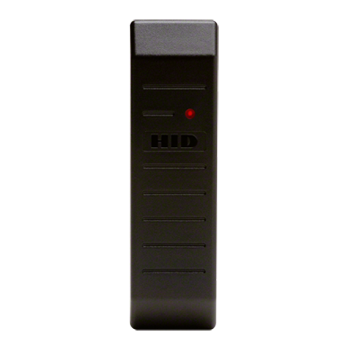

MiniProx
125 kHz Mullion Mount Proximity Reader

The MiniProx proximity card reader’s potted electronics and slim, attractive design are ideal for indoor or outdoor mounting.

* Accepts 5 to16 volts, meeting most voltage requirements.

* Available with Wiegand or Clock-and-data interface.

* Allows easy upgrade from magstripe to a proximity reader; no rewiring or pulling of new cable required.

* Offers high reliability, consistent read-range and low power consumption in an easy-to-install package.

* Mounts directly onto metal with no change in read range performance.

* Provides multicolor LED, compatibility with all standard access control systems and internal or host control of LED and beeper.

Data Sheet

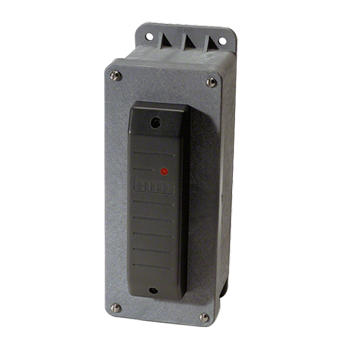

Hazardous Location MiniProx
125 kHz Mullion Mount Proximity Card Reader

* The hazardous Location MiniProx provides the same features and dimensions as the MiniProx reader, with an incorporated junction box rated for use in hazardous locations.

Data Sheet

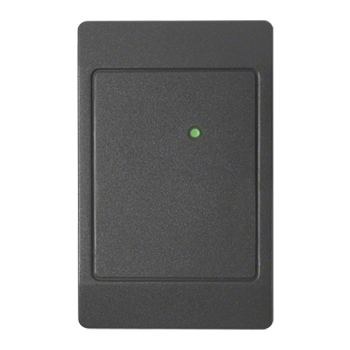

ThinLine II
125 kHz Low Profile Proximity Card Reader

* The size of most standard U.S. switch plates.

* Available with Wiegand or Clock-and-Data interface.

* Potted reader suitable for indoor or outdoor use.

* Power requirements: 5-16VDC.

* Current requirements 20mA avg / 115mA peak at 12VDC.

* Dimensions: 4.7” x 3.0” x 0.68” (11.9 x 7.6 x 1.7 cm).

* Classic Series covers available in black, gray, white or beige. Designer Series covers available in black or gray.

* Base part numbers: 5395 (Wiegand), 5398 (Clock-and-Data).

* 18” (45 cm) wire pigtail standard; consult factory for 9’ (2.7 m) pigtail available by special order.

Data Sheet

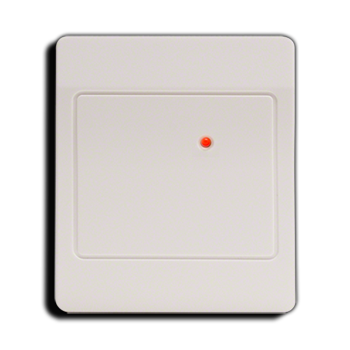

Prox80
125kHz Europe & Asia Back Box Sized proximity card reader

HID's Prox80 reader is an 80 mm (3.15") square reader designed to mount directly to European and Asian size single-gang electrical back boxes. With a three-piece, weatherproof potted enclosure and long pigtail (2.7 m / 9 ft) design, the Prox80 is easily installed and provides up to 14 cm (5.5") of read range.

Data Sheet

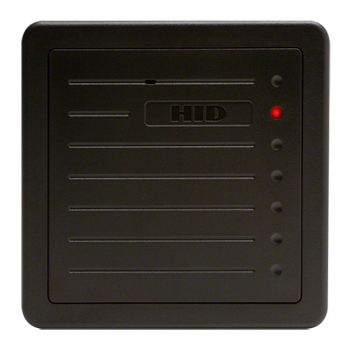

ProxPro
125 kHz Versatile Proximity Card Reader

* Ideal for medium-range applications.

* Available with Wiegand, Serial (RS-232/RS-422) or Clock-and-Data interface.

* Sealed for indoor or outdoor use.

* Optional glass mount kit available for mounting the reader behind glass.

* Power requirements: 10-28.5 VDC.

* Current requirements: 100mA avg / 120mA peak.

* Dimensions: 5.0” x 5.0” x 1.0” (12.7 x 12.7 x 2.54 cm).

* Available in gray or beige.

* Base part numbers: 5355 (Wiegand), 5352 (Serial), 5358 (Clock-and-Data)

Data Sheet

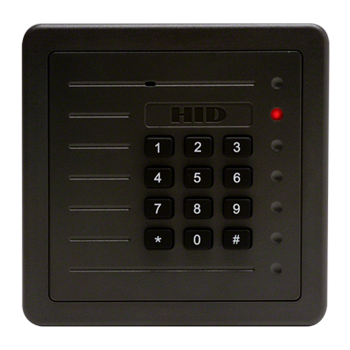

ProxPro with Keypad
125 kHz Keypad Proximity Card Reader

* Ideal for medium-range applications.

* Available with Wiegand, Serial (RS-232/RS-422) or Clock-and-Data interface.

* Sealed for indoor or outdoor use.

* Optional glass mount kit available for mounting the reader behind glass.

* Power requirements: 10-28.5 VDC.

* Current requirements: 100mA avg / 120mA peak.

* Dimensions: 5.0” x 5.0” x 1.0” (12.7 x 12.7 x 2.54 cm).

* Available in gray or beige.

* Base part numbers: 5355 (Wiegand), 5352 (Serial), 5358 (Clock-and-Data).

* Keypad data and card data can be sent on the same cable, or on a separate cable using 2 of 7 or 3 x 4 matrix.

Data Sheet

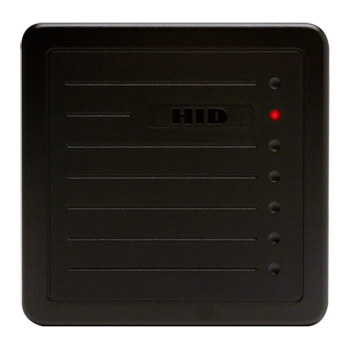

ProxPro II
125 kHz New Generation Proximity Card Reader

* Ideal for medium-range applications.

* Available with Wiegand or Clock-and-Data interface.

* Optional glass mount kit available for mounting the reader behind glass.

* Potted reader suitable for indoor or outdoor use.

* ower requirements: 5-16 VDC.

* Current requirements: 25 mA avg / 125 mA peak at 12 VDC.

* Dimensions: 5.0” x 5.0” x 1.0” (12.7 x 12.7 x 2.54 cm).

* Available in black, white, gray or beige.

* 18” (45 cm) wire pigtail standard; consult factory for 9’ (2.7 m) pigtail available by special order.

* Base part numbers: 5455 (Wiegand), 5458 (Clock-and-Data).

Data Sheet

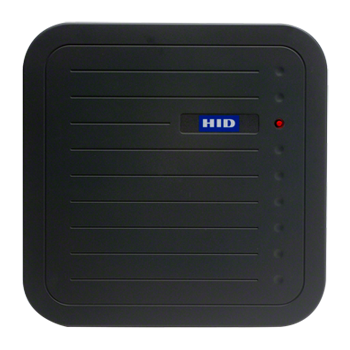

MaxiProx
125 kHz Long Range Proximity Card Reader

* Long read range distance (up to 8’ with ProxPass ® ).

* Autotune allows read range to be maintained within four inches of metal.

* Wiegand, Clock-and-Data, RS-232, RS-422, and RS-485 output modes are configurable.

* “Parking hold” feature ensures accurate detection of vehicles in parking lanes.

* Power requirements: 12 or 24 VDC (configurable) .

* Current requirements: 200mA avg / 700 mA peak at 12VDC; 260mA avg / 1.2A peak at 24 VDC.

* Dimensions: 12.0” x 12.0” x 1.0” (30.5 x 30.5 x 2.54 cm).

* Available in gray.

Data Sheet

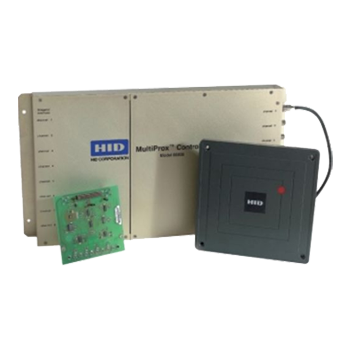

MultiProx
Seamless Upgrade from analog to digital

* Cost effective replacement and upgrade of existing Schlage/Westinghouse (WSE) systems without replacing existing WSE cards and installed coax wiring.

* Simultaneously reads both HID and most WSE analog proximity cards. Provides HSM to replace WSE systems’ MSM.

* Base part numbers: Controller - 6000, Reader - 5385, HSM Board - 6020.

Data Sheet

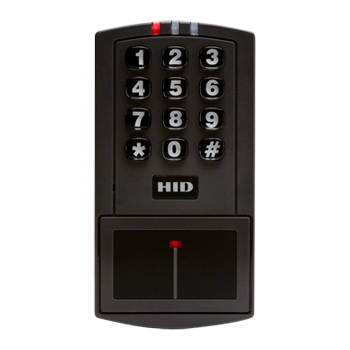

EntryProx
125 kHz Stand-Alone Proximity Card Reader

* Provides single-door proximity access control for small installations or remote locations.

* Easily modified to become an on-line reader by switching to Wiegand output mode.

* Detachable antenna module can be mounted up to 10 feet away.

* Keypad for PIN entry and programming.

* Power requirements: 10-15 VDC.

* Current requirements: 150mA at 12 VDC.

* Dimensions: 5.25” x 2.75” x 1.625” (13.33 x 6.98 x 4.1 cm).

* EntryProx is now UL 294 listed!

Data Sheet

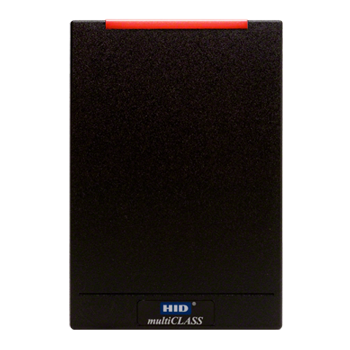

RP40 multiCLASS Reader
Multi-Technology Prox and iCLASS Reader

* The RP40 is a multi-technology card reader designed for customers upgrading their current card system from HID Prox to iCLASS? credentials. With the RP40 reader, the customer has the ability to transition to smart cards over time while incorporating the use of multiple card technologies within a single building or across multiple facilities.

* Unlike contactless smart card serial number readers, with the RP40 multiCLASS reader, you get enhanced security through mutual authentication and data encryption.

* Only the RP40 provides true iCLASS security, the ease of Prox, the power of smart cards and the confidence of choosing HID, the worldwide leader in access control.

Data Sheet
