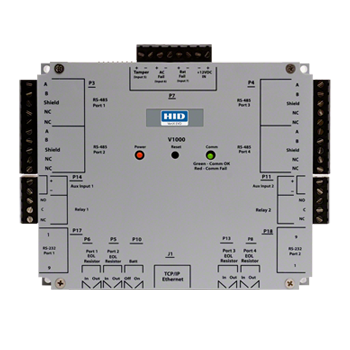

V1000
ACCESS CONTROL PROCESSING AND HOST INTERFACE

The HID VertX® products provide a complete and fully featured hardware/firmware infrastructure for OEM access control software host systems, communicating via industry standard TCP/IP protocol, over 10/100 Mbps Ethernet or the Internet.

The V1000 boasts a 32-bit RISC processor running the Linux Operating System. On-board flash memory allows program updates to be downloaded via the network. The V1000 connects up to 32 Door/Reader, Input Monitor, or Output Control Interfaces via two independent RS-485 networks, each network having two sets of input connections for optimum system topology. This architecture minimizes the impact on corporate LANs by using only one TCP/IP address for every 32 interfaces, and by handling low-level transactions on the RS-485 network.

Data Sheet

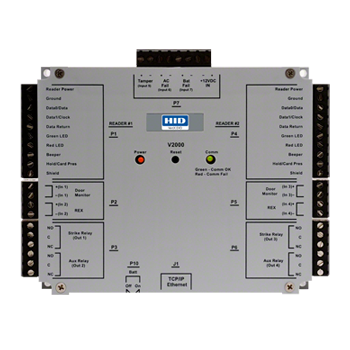

V2000
Access Control Processing and Host Interface for Two Readers/Doors.

The HID VertX® products provide a complete and fully featured hardware/firmware infrastructure for OEM access control software host systems, communicating via industry standard TCP/IP protocol, over 10/100 Mbps Ethernet, or the Internet. It can also interface with a Windows® DLL.

The V2000 boasts a 32-bit RISC processor running the Linux Operating System. On-board flash memory allows program updates to be downloaded via the network. The V2000 connects to two access control card readers via Wiegand or Clock-and-Data interface controlling either one or two doors. This architecture takes advantage of the existing corporate LAN and the existing CAT-5 cable.

Data Sheet

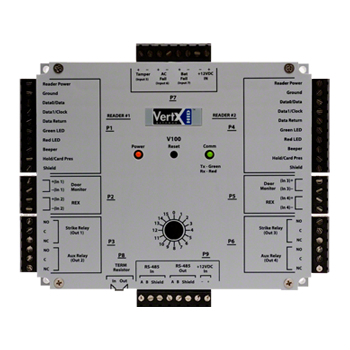

V100
Access Control Processing for Two Readers/Two Doors.

The HID VertX® products provide a complete and fully featured hardware/firmware infrastructure for access control software host systems.

The V100 Door / Reader Interface connects two access control card readers via Wiegand or Clock-and-Data interface controlling either one or two doors. The V100 features on-board flash memory, allowing program updates to be downloaded via the network. The V100 connects to the V1000 through a high speed RS-485 network. The V1000, in turn, communicates with the system host via industry standard TCP/IP protocol over 10/100 Mbps Ethernet or the Internet. This architecture minimizes the impact on corporate LANs by using only one TCP/IP address for every 32 interfaces and by handling low-level transactions on the RS-485 network.

Data Sheet

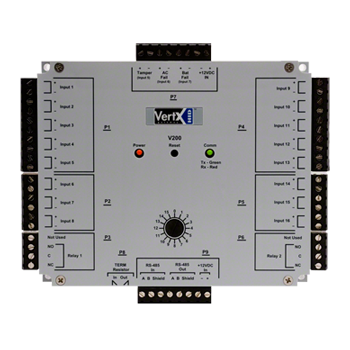

V200
Alarm Input Processing for up to 16 Zones.

The HID VertX® products provide a complete and fully featured hardware/firmware infrastructure for access control software host systems.

The V200 input monitor interface connects up to 16 supervised input circuits. Each input point monitors and reports normal, off-normal, and alarm states. The V200 features on-board flash memory, allowing program updates to be downloaded through the network. The V200 connects to the V1000 via a high speed RS-485 network. The V1000, in turn, communicates with the system host via industry standard TCP/IP protocol, over 10/100 Mbps Ethernet, or the Internet. This architecture minimizes the impact on corporate LANs, by using only one TCP/IP address for every 32 interfaces, and by handling low-level transactions on the RS-485 network.

Data Sheet

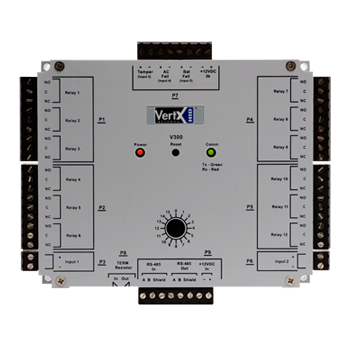

V300
Output Control Processing for up to 12 Devices

* Off-normal status programmable for each input point (NO or NC alarm devices may be used).

* 12 latching Form-C relays, contacts rated at 2A @ 30VDC.

* Connects to the V1000 via RS-485.

* Receives and processes real time commands from the V1000.

* Reports all activity to the V1000.

* Allows complex input/output linking when used with the V1000 and V200.

* Attractive polycarbonate enclosure protects components from damage.

* All connections and indicators are fully identified by silk-screened nomenclature on the cover.

* UL 294 and UL 1076 recognized component.

Data Sheet
